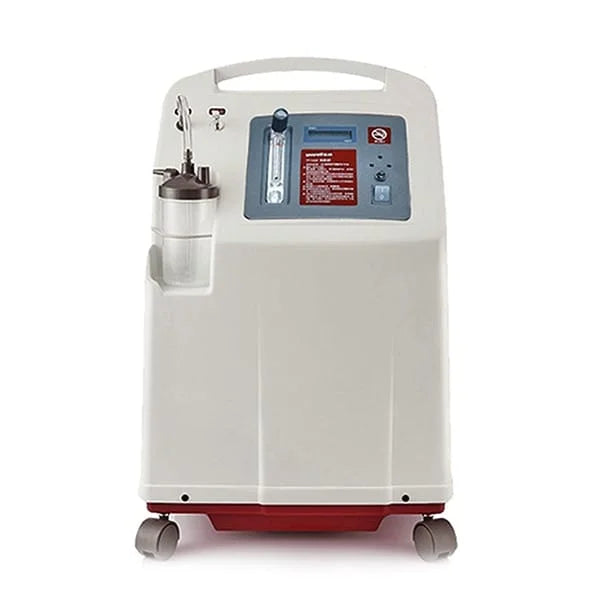

Believia Oxygen Concentrator 10L

Believia Oxygen Concentrator with Nebulizer – 10 L/min

The Believia 7F‑10 Oxygen Concentrator is a high-capacity home and clinical oxygen therapy device designed to deliver continuous high-purity oxygen. Featuring a built-in nebulizer function, it provides effective respiratory therapy for patients with chronic lung conditions or acute respiratory needs. The device is engineered for reliable, long-term operation and safe use.

Key Features

Adjustable Flow Range:

• 7F‑5: 1 – 10 L/min
• 7F‑8: 2 – 8 L/min
• 7F‑10: 2 – 10 L/min
• Oxygen Concentration: 87 – 95.5% for therapeutic use
• Maximum Outlet Pressure:
• 7F‑5 / 7F‑8: 45 kPa ± 4.5 kPa (6.52 psi ± 0.65 psi)
• 7F‑10: 62 kPa ± 4.5 kPa (8.99 psi ± 0.65 psi)
• Pressure Relief Mechanism: Operational at 250 kPa ± 25 kPa (36.25 psi ± 3.63 psi)

Altitude Performance:

• 7F‑5: Up to 1828 m (6000 ft) without degradation; 1828–4000 m below 90% efficiency
• 7F‑8 / 7F‑10: Up to 1230 m (4000 ft) without degradation; 1230–4000 m below 90% efficiency
• Quiet Operation: Sound level ≤ 60 dB(A)
• Maximum Nebulizing Rate: ≥ 0.2 mL/min
• Electrical & Power Specifications
• Power Supply: AC120V ±10%, AC220–230V ±10%, 50/60 Hz
• Current Draw:
• 7F‑5 / 7F‑8: 4.6 A (AC120V), 2.2 A (AC220–240V)
• 7F‑10: 8.5 A (AC120V), 4 A (AC220–240V)
• Input Power:
• 7F‑5 / 7F‑8: ≤ 600 VA
• 7F‑10: ≤ 1000 VA

Physical Specifications

Weight:

• 7F‑5: 26 kg (57.3 lbs)
• 7F‑8: 27.5 kg (60.6 lbs)
• 7F‑10: 32.5 kg (71.7 lbs)
• Dimensions: H44.5 × W37.2 × D68 cm (17.5″ × 14.7″ × 26.8″)
• Minimum Operating Time: 30 minutes

Additional Features

• Built-in nebulizer for respiratory therapy
• Continuous operation with time accumulation and automatic power-off functions
• Fault self-detection system with four alarms: low oxygen, pressure/cycle failure, compressor failure, and power loss
• Designed for home and clinical use, supporting safe and reliable oxygen therapy

Safety & Usage Notes

• Place in a well-ventilated area away from flammable/explosive gases
• Use under medical supervision if prescribed
• Ensure compliance with local electrical and safety regulations
