Contec Children Pulse Oximeter

Contec Children’s Pulse Oximeter

• Compact and lightweight design specially suitable for children
• Low power consumption with long-lasting performance
• Easy and convenient operation—simply insert a finger into the sensor
• Accurately measures SpO₂ (blood oxygen saturation) and pulse rate
• Clear display shows real-time readings instantly
• Portable and ideal for home or clinical use

Features

• SpO₂ value display
• Pulse rate value display
• Bar graph display
• Pulse waveform display
• Multiple display modes selectable
• Adjustable screen brightness
• Continuous operation up to 20 hours
• Automatic standby mode after 5 seconds of no signal

Technical Specifications

• Display Type: LCD
• SpO₂ Measuring Range: 0% – 100%
• Pulse Rate Measuring Range: 30 bpm – 250 bpm
• Resolution: 1% SpO₂, 1 bpm pulse rate
• Power Supply: 2 × AAA alkaline batteries (or rechargeable)
• Voltage Range: 2.6 V – 3.6 V
• Power Consumption: < 30 mA

Optical Sensor

• Red Light: 660 nm, 6.65 mW
• Infrared Light: 880 nm, 6.75 mW

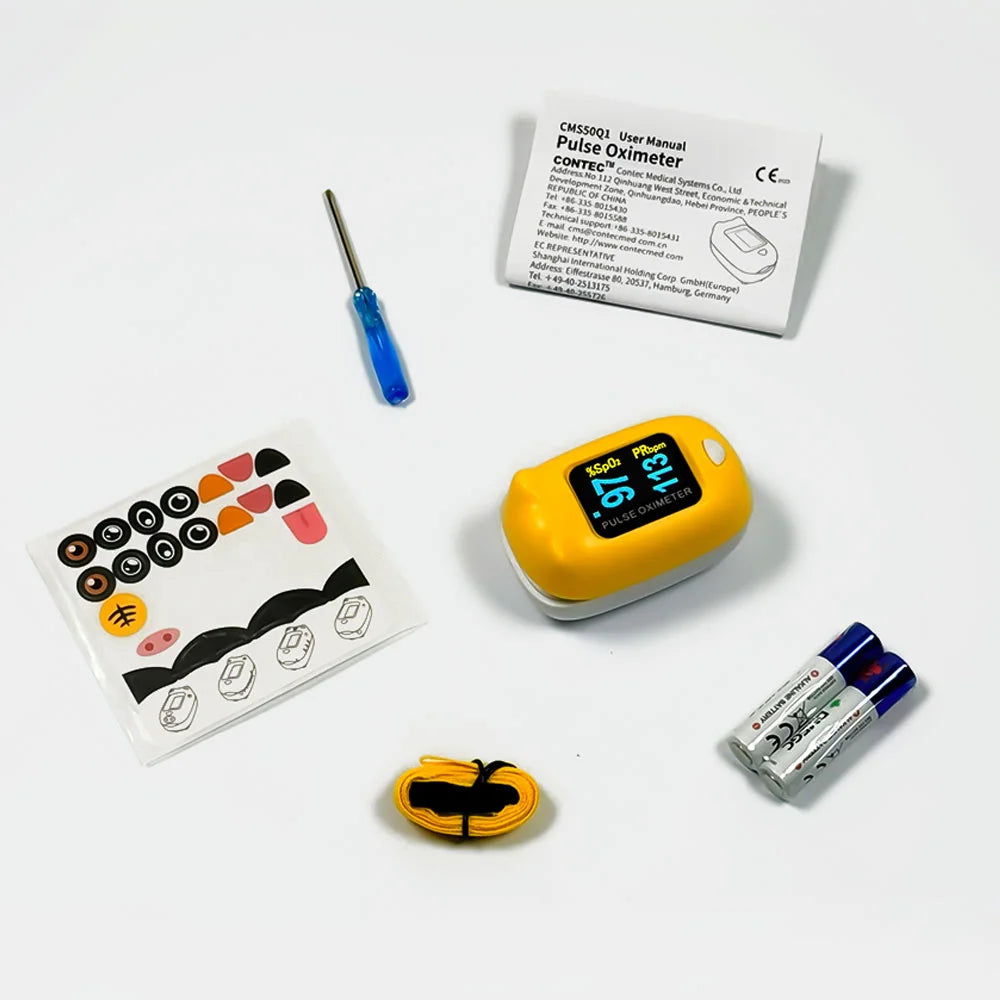

Included in the Box

• Children’s Pulse Oximeter
• Hanging rope
• Two batteries (optional)
• User manual
