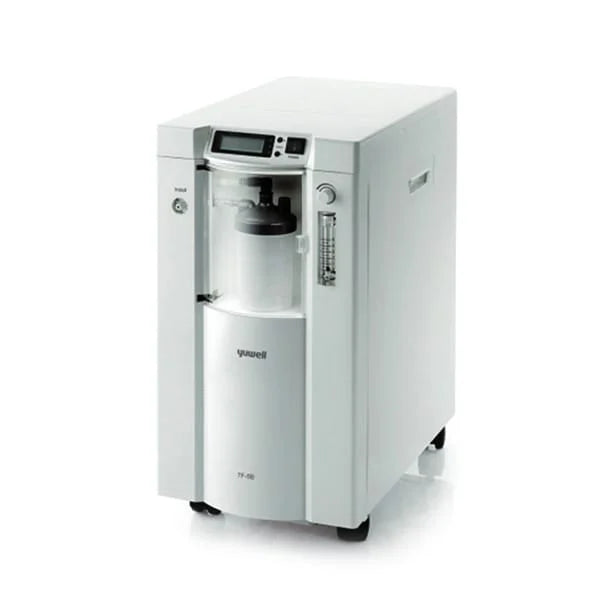

Yuwell Oxygen Concentrator 5L

Yuwell 7F‑5B Oxygen Concentrator – 5 L/min with Nebulizer

The Yuwell 7F‑5B is a high-quality home oxygen concentrator designed for individual oxygen therapy. It separates oxygen from room air using advanced technology and provides a stable, high-purity oxygen supply through a nasal cannula. This model also features a built-in nebulizer for respiratory therapy, making it ideal for patients with chronic respiratory conditions.

Key Features

• Positive Air Intake & Air Cleaner: Ensures clean air and extends molecular sieve lifespan
• Timing & Accumulated Hours Function: Displays total working hours and allows scheduled power-off
• Fault Self-Detection System: Automatic diagnosis of system faults

Four Safety Alarms:

• Low oxygen concentration alarm
• Pressure cycle failure alarm
• Compressor failure alarm
• Power failure alarm
• Oxygen Concentration: 87% – 95.5% for reliable therapeutic delivery
• Maximum Outlet Pressure: 20 – 50 kPa (2.9 – 7.25 psi)
• Pressure Relief Mechanism: Activates at 250 kPa ± 25 kPa (36.25 psi ± 3.63 psi)
• Quiet Operation: ≤55 dB(A) during normal use

Performance Specifications

• Oxygen Flow: 0.5 – 5 L/min
• Output Pressure: 20 – 50 kPa
• Sound Level: ≤50 dB(A)
• Minimum Operating Time: 30 minutes
• Input Power: ≤400 VA
• Power Supply: AC120V ±10% / AC220V ±10%, 50 Hz
• Weight: 24 kg (53 lbs)
• Dimensions: H55.6 × W28.5 × D47 cm (21.9″ × 11.23″ × 18.52″)

Additional Features

• Built-in nebulizer for inhalation therapy
• Compact, lightweight design for easy home use
• Continuous, reliable oxygen supply for long-term therapy

Safety & Usage Notes

• Keep the device in a well-ventilated area, away from flammable or explosive gases
• Use under medical supervision if prescribed
• Follow local electrical and safety regulations for operation
